Brinell Hardness Tester
Brinell Hardness Tester is one of the most commonly used device to determine the hardness of a specimen. Hardness of a specimen is its characteristic property to resist scratch, indentation and penetration. Using Brinell Hardness Tester machine, a load is applied on the specimen to create an indentation through an indenter. The indenter is spherical in shape and is generally made up of Tungsten-Carbide. The various readings are then noted and the Brinell Hardness Number (BHN) formula is used to compute the result. The More the BHN, the harder is the specimen.
Advantages of Brinell Hardness Tester
Measurement accuracy
The precision manufacturing industry often deals with complex parts and materials that require precise hardness measurements. Brinell hardness testers provide the accuracy that enables these industries to confidently assess the hardness of a wide range of materials. This precision ensures that manufactured parts can withstand wear, stress and extreme conditions, guaranteeing the longevity of the final product.
Diverse Material Compatibility
One of the key advantages of Brinell Hardness Testing is its ability to test a wide array of materials, ranging from soft metals to hard alloys. In fine manufacturing, where diverse materials are utilized, this versatility is invaluable. Whether it's testing the hardness of delicate electronic components or robust aerospace alloys, the Brinell Hardness Tester delivers consistent and reliable results.
Efficiency in Production
Fine Manufacturing Industries operate on tight schedules and demand efficient production processes. The Brinell Hardness Tester enables quick and precise hardness evaluations, allowing for swift decision-making in the manufacturing process. Identifying the hardness of materials promptly ensures that only high-quality components are integrated into the final assembly, streamlining production workflows and minimizing delays.
Quality Assurance
Maintaining high-quality standards is non-negotiable in fine manufacturing. Brinell Hardness Testing acts as a pillar of quality assurance, enabling industries to adhere to international quality standards and certifications. By verifying the hardness of materials, manufacturers can guarantee that their products meet the stringent requirements of industries such as aerospace, automotive, and electronics.
-
![Touch Screen Automatic Turret Digital Display Brinell Hardness Tester]()
Touch Screen Automatic Turret Digital Display Brinell Har...Product introduction HBS-3000Z touch screen digital display Brinell hardness tester has a new generation of domestic advanced Brinell hardness tester. It is suitable for the measurement of Brinell...read more -
![HBC Hammer Brinell Hardness Tester]()
HBC Hammer Brinell Hardness TesterHBC hammer hit Brinell hardness testing equipment Main features: Hand-held and hammered Brinell measuring instrument, simple operation, compact, easy to carry, easy to operate, sturdy and durable...read more -
![HB-3000C Brinell Hardness Tester]()
-
![Buy Discount Hardness Tester Reading Microscope]()
Buy Discount Hardness Tester Reading MicroscopeSmall size, easy to carry, simple operation, accurate reading.Especially the competitive price .read more -
![HBC Hammer Hit Brinell Hardness Tester]()
HBC Hammer Hit Brinell Hardness TesterSmall size, easy to carry and operate;Especially the competitive price .read more -
![Portable Brinell Hardness Tester]()
Portable Brinell Hardness TesterSmall size, easy to carry and operate;Especially the competitive price .read more -
![Cheap Brinell Hardness Testing Machine]()
Cheap Brinell Hardness Testing MachineThis type hardness tester with Large LCD liquid crystal display, menu intellisense, easy to operate; high efficiency and wide application range . Especially the competitive price .read more -
![Low Price Brinell Hardness Testing Equipment]()
Low Price Brinell Hardness Testing EquipmentThis type hardness tester with electric reversing switch, high power solid state relay; high efficiency and simple operation, wide application range . Especially the competitive price .read more -
![Brinell Hardness Testing Machine]()
Brinell Hardness Testing MachineThis type hardness tester with mechanical reversing switch, high power solid state relay; high efficiency and simple operation, wide application range . Especially the competitive price .read more -
![Brinell Hardness Testing Machine]()
Brinell Hardness Testing MachineIt's suitable to determine Brinell hardness of black metal, non-ferrous metals and bearing alloy materialread more -
![Brinell Hardness Testing Equipment]()
Brinell Hardness Testing EquipmentIt's suitable to determine the Brinell hardness of ferrous metals, nonferrous metals and bearing alloy materialsread more -

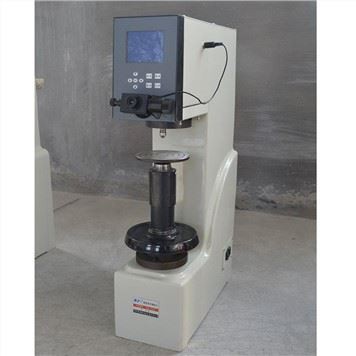

![Digital Brinell Hardness Tester]()
Digital Brinell Hardness TesterIt's suitable to determine the Brinell hardness of ferrous metals, nonferrous metals and bearing alloy materialsread more
Why Choose Us
Application
Laizhou Lailuote Testing Instrument Co., Ltd. specializes in researching, developing, and manufacturing hardness testers and metallographic preparation instruments. Our products are widely used in quality control, colleges, laboratories, and various industries.
Professional Team
We have assembled a professional team that includes engineers, scientists, marketing experts, and customer service personnel. Many team members have over 40 years of experience in the field.
Solution
Our specialized sales engineers are available to provide tailored solutions for customers around the world. You can reach them by phone, email, or online.
Quick Response
We have built the infrastructure to meet the diverse needs of our customers, both domestically and internationally. We listen to our customers, focus on their needs, and respond quickly to their requests.
The Brinell method is the most commonly used hardness measurement technique in industry. To mark the surface of the sample, this test method uses a steel ball indenter with a diameter that varies according to the sample to be measured. A microscope or measuring magnifier complete the device.
This Method Has Many Advantages:
First of all, it is the preferred method for measuring the hardness of rough samples, which are more difficult to handle with other methods.
The test loads applied are high (3,000 Kg).
There are many indenter sizes and loads possible, which means the measuring range is very wide.
A Brinell hardness tester can test all types of metals.
The results of the Brinell method are more accurate and reliable than those obtained by the Rockwell method because the use of a spherical indenter distributes pressure evenly.
The Brinell hardness tester adopts the Brinell hardness (BRINELL) measurement method, which can measure the Brinell hardness, and is suitable for materials such as unquenched steel, cast iron, non-ferrous metals and soft bearing alloys.
The method of Brinell testing consists of forcing a hardened steel ball, under a predetermined pressure, into the test material. The Brinell hardness number is obtained by dividing the pressure in kilograms spherical surface of the impression, which is expressed in square millimeters.
It can be widely used in testing, scientific research and production in such industries as measurement, machinery manufacturing, metallurgy, building materials, and scientific research institutes.
Load Cell driven system provides precise control of test force Application
Direct digital reading
Engineered to obtain highly sensitive and accurate readings
Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
Measuring Range: 8-650HBW
Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
The whole weight of the Brinell Hardness tester is 50% less than the traditional dead weights type tester.
Test load selection by keyboard and LCD screen.
Fully automatic test cycles. The Brinell hardness Tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automatically. This greatly improves reproducibility of test results since operator influence is eliminated.
Selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large LCD screen.
The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen.
Equipped with a 20X optical microscope to measure the diameter of Brinell indention.
Brinell Hardness Calculator (BHC) make the Brinell hardness value calculation easier and convenient.
All The Essentials Of The Brinell Hardness Tester Explained
A Brinell hardness tester is a machine that is used for measuring the hardness of metal. Testers range in size from around 600mm high for the portable ones, to several metres high for the largest ones installed in steelworks.
Brinell hardness testers all work in the same way; they make an indentation in the metal being tested. The diameter of the indentation is then measured and the result of the measurement is put into a formula to calculate the hardness. Follow this link to read more information on the Brinell hardness test.
The indentation is made by pressing a tungsten carbide ball into the metal surface for a specified period of time and with a precisely controlled force. Tungsten carbide is used as it is much harder than steel so it is not deformed by the process. The load ranges from 1 kilogram force (kgf) applied through a 1mm diameter ball (for testing very thin, sheet aluminium) to 3000 kgf applied through a 10mm ball, which is used on steel.
The material to be tested is placed on a level table - known as the anvil - which can usually move up and down to accommodate various sizes of sample. It moves up and down on a column that is rigidly mounted to the body of the hardness tester. The 'test head,' which holds the tungsten carbide ball, then descends onto the material to make the indentation.
Because of the force needed to make an indentation in steel, a Brinell hardness tester is a robustly constructed machine. In addition to the robust construction, testers usually have electronic circuitry and a computer to run the indentation process. There are exceptions to this: the smallest testers are hydraulic and hand operated and even some medium-sized machines are lever operated, with the operator using a stopwatch in place of software-driven electronic timing.
Most small and medium hardness testers have a characteristic shape somewhat like a square-ish 'C'. The test sample is placed on an anvil that is fastened to the 'bottom' of the C and the indenting components descend from the 'top' of the C. An example is shown in this picture. The 'open front' of the 'C' allows long and unwieldy components like beams to be tested. Where testing of very large samples / components is required, the test head sits within a carriage that is mounted on a rail between two posts. An example can be seen here.
Global Brinell Hardness Tester Market- Drivers:
Advancements in Hardness Testing Methods: Ensuring Product Safety, Quality, and Standards through Material Examination
The development of new materials-based hardness testing techniques is the main focus of major players. Testing is done both before and after the production of any product in order to examine the properties of these materials. To ensure the product's safety, quality, and standards, the material needs to have its hardness tested.
To assess the surface hardness and material compression strength of materials such as concrete and soil, Brinell hardness testers are used in the construction industry. Brinell hardness testers in the electronics industry use penetration resistance to gauge the strength of an electronic material. The determination of the shear strength of brake linings, rim testing, and various metal tensile tests for aluminum, stainless steel, and a variety of deep-drawn sheets are all performed in the automotive industry using Brinell hardness testers.
Industrial Automation and Growing Manufacturing Sector to Propel Market Growth
The demand for Brinell hardness testers is being fueled by the growing trend of industrial automation across numerous industries, including metalworking, manufacturing, aerospace, and automotive. In automated production processes, these testers are crucial for quality assurance and control, ensuring the dependability and durability of materials. The manufacturing sector's expansion, particularly in emerging economies, is a key market driver for Brinell hardness testers. In order to maintain the quality of materials and products, there is a growing need for hardness testing equipment.
Technological Advancements and Portable Solutions
The market for Brinell hardness testers has a lot of opportunities thanks to the ongoing advancements in technology. Hardness testing equipment is more effective, accurate, and user-friendly when digital interfaces, automation, and data analysis capabilities are integrated into it. Manufacturers can profit from these developments by creating Brinell hardness testers that are cutting edge technologically and innovative in order to meet changing consumer demands.
Portable hardness testers are increasingly in demand, particularly in fields that call for on-site or in-field testing. Since they are simple to move between locations, portable Brinell hardness testers provide flexibility, convenience, and time savings advantages. Brinell hardness testers that are portable and lightweight could be created and offered on the market to meet the demands of sectors such as mining, oil and gas, construction, and mining.
Expanding the Reach of Brinell Hardness Testers
In the past, metalworking, manufacturing, and the automotive industries have all used Brinell hardness testers. The potential exists to broaden their use in new industries. Hardness testing is useful for ensuring the quality, dependability, and safety of products in sectors such as healthcare, electronics, and consumer goods. The market can open up new growth prospects by investigating and utilizing these new application areas.
Emerging economies' quick industrialization and economic expansion present the Brinell hardness tester market with numerous opportunities. Hardness testing equipment is increasingly needed to maintain the quality of materials and goods as manufacturing activities grow in these areas. By providing reasonably priced and dependable Brinell hardness testers suited to these markets' unique requirements, manufacturers can capitalize on their potential.
Principle And Scope Of Application Of Brinell Hardness Tester Test Method
The Brinell Hardness Tester test is a test method with the largest indentation among all hardness tests. It can reflect the comprehensive performance of the material, and is not affected by the micro-segregation and uneven composition of the sample structure, so it is a hardness test method with high precision.
The data of Brinell hardness measurement is accurate and stable, and it is suitable for detecting unquenched seamless pipes (ASTM A53 GR.B), cast iron steel pipes, non-ferrous metals or light and soft bearing alloy steel pipes.
The principle of the Brinell Hardness Tester test method is to press a quenched steel ball or cemented carbide ball with a diameter of D (mm) into the surface of the test piece under the action of a specified load P (kgf) and stay for a certain period of time to cause plastic deformation After stabilization, remove the load and measure the diameter d of the indentation formed on the metal surface to be tested. From this, calculate the indentation ball area F (mm2), and then calculate the average load per unit area of the indentation ( P/F), as the Brinell hardness value of the tested metal.
When the indenter is a hardened steel ball, the hardness symbol is indicated by HBS, which is suitable for metal materials with a hardness value of less than 450. When the indenter is a cemented carbide ball, the hardness symbol is indicated by HBW, which is suitable for the hardness value of 450-650. Metal material.
It can be seen from the above formula that when the applied load P and the ball diameter D have been selected, the hardness value is only related to the indentation diameter d. The larger the d, the lower the deformation resistance of the metal material to the indentation of the sphere, that is, the smaller the Brinell hardness value, the softer the material; conversely, the larger the d, the greater the Brinell hardness value, and the harder the material.
In the actual test, the hardness value does not need to be calculated according to the above formula. Generally, the indentation diameter d is measured with a reading magnifying glass, and then the measured hardness value can be obtained by looking up the table according to the d value. It is customary to write only the value of the hardness value without marking the unit. For example, when the Brinell hardness value is 200 Kgf/mm2, it is generally written as 200HBS.
The advantage of the Brinell hardness test method is that the measured data is accurate and stable. The disadvantage is that the indentation is large, and the hardness of the finished product or thin-walled steel pipe is not suitable for testing. In addition, due to the slow operation, it is not applicable to a large number of steel pipe products that are inspected piece by piece.
Brinell hardness testers are mechanical devices used to measure the hardness of materials by indenting a small steel ball or tungsten carbide ball into the surface of the material. The depth of the indentation is measured and converted into a Brinell hardness number (BHN), which indicates the material's resistance to indentation.
The Brinell hardness testers market is expected to experience significant growth in the coming years. The increasing demand for hardness testing across various industries such as automotive, aerospace, and manufacturing is a major driving factor behind this growth. The ability of Brinell hardness testers to accurately measure the hardness of a wide range of materials, including metallic and non-metallic materials, makes them highly desirable in these industries.
In addition, the shift towards automation and the integration of advanced technologies in hardness testing equipment is also boosting the market growth. The introduction of digital Brinell hardness testers, which offer faster and more precise measurements, is gaining traction among end-users. These testers provide convenient and time-saving features such as automatic indentation measurements and data analysis.
Moreover, the market is witnessing a growing demand for portable Brinell hardness testers, which enable testing in remote or difficult-to-reach locations. These devices are lightweight, easy to use, and offer accurate measurements, making them suitable for field and on-site testing.
What Specific Maintenance Tasks of Brinell Hardness Tester Need to Be Performed
Cleaning
Residual dirt, debris, or contaminants on the indenter or testing surface can disrupt the indentation formation and measurement process. This can result in inaccurate hardness readings, compromising product quality control, safety assessments, and material characterization.
●Clean the Indenter
Wipe the indenter with a soft cloth dampened with a cleaning solution. Avoid using harsh chemicals or abrasives, which could harm the indenter tip. If necessary, use a cotton swab dipped in the cleaning solution to reach crevices or difficult-to-clean areas. Finally, dry the indenter completely with a clean, dry cloth.
●Clean the Testing Surface
Wipe the testing surface with a soft cloth soaked in the cleaning solution. Make sure to remove any dirt, debris, or oil residue that may interfere with the indentation formation. To remove any loose particles from hard-to-reach areas, use compressed air. Use a clean, dry cloth to thoroughly dry the testing surface.
Lubrication
Proper lubrication reduces friction, allowing components to move freely and smoothly, increasing their lifespan and ensuring accurate results. Metal components in the tester are prone to corrosion, particularly in humid environments. Lubrication provides a protective barrier against moisture and oxidation, preventing rust and corrosion, which can impair component functionality and accuracy.
● Identify Lubrication Points: Use the user manual to identify specific lubrication points on your tester model. These are typically friction points on moving components such as gears, shafts, and bearings.
● Choose The Right Lubricant: Use the Supplier's recommended lubricant, which is appropriate for the materials and operating conditions of your tester.
● Apply The Lubricant Sparingly: Over-lubrication can attract dust and debris, reducing accuracy and potentially introducing contamination.
● Follow The Recommended Frequency: The Supplier's instructions will specify how often to lubricate each point based on usage and environmental conditions. Follow the recommended schedule for best results.
Replacement of Parts
Replacing worn-out parts reduces the likelihood of malfunctions or breakdowns while testing. This minimizes disruptions to your workflow and ensures consistent data collection.
● Common Parts Requiring Replacement
Indenter: The indenter is crucial for creating an indentation on the test material. It is susceptible to wear and tear, particularly when testing hard or abrasive materials.
Loading Mechanism: This system applies a specified force to the indenter. Its components, such as springs or levers, can wear over time, affecting the accuracy with which force is applied.
Measuring System: The system measures the indentation diameter, which is important for calculating hardness. Its components, such as a ruler or optical sensor, may become misaligned or lose accuracy over time.
● Replacement Process
Consult the user manual: Refer to Supplier instructions for specific procedures, recommended tools, and compatible replacement parts.
Safely power down and disconnect the tester.
Identify the part requiring replacement: Locate the worn-out component and get the correct replacement.
Carefully remove the old part: Follow the Supplier's instructions to dismantle the relevant parts without harming the surrounding components.
Install the new part: Ensure proper alignment and secure installation as per manual instructions.
Calibrate the tester: After replacing critical parts, such as the indenter or loading mechanism, it's important to have the tester calibrated by a qualified technician for accurate measurements.
Checking for Wear and Tear
Regularly inspecting for wear and tear allows you to detect potential problems early on and take preventative measures, such as lubrication or replacement, to avoid costly breakdowns and downtime.
● How to Check for Wear and Tear
Visual Inspection: Visually inspect the indenter, loading mechanism, and other critical components for signs of wear, including cracks, chips, or excessive wear on contact surfaces.
Performance Testing: Perform periodic performance tests with certified reference blocks or test materials. Compare the measured hardness values to the known values for the reference materials. Significant deviations indicate potential errors in the instrument's accuracy.
● Specific Components to Check
Indenter: The indenter is the most important component for accurate hardness measurement. Check for chipping, rounding, or flattening of the indenter tip. Replace the indenter if it shows signs of significant wear.
Loading Mechanism: Ensure the loading mechanism operates smoothly and applies the appropriate force per test specifications. Check for signs of binding, leaks, and excessive noise.
Measuring System: The measuring system, whether manual or digital, should provide precise readings of the indentation diameter. Check for inconsistencies or malfunctions in the measuring system.
Our Factory
Laizhou lailuote testing instrument Co.,ltd. specializes in researching&developing, manufacturing hardness testers and metallographic preparation instruments. Our products are Widely used in quality control, college, laboratories and industries. Founded in 2007, Located in the "base of china hardness testers" -Laizhou city, Lailuote is today one of China's leading manufacturers of hardness testers and metallographic preparation products. Over the years we have built a professional team of engineers, scientists, marketing sales and customer services, in which many people has more than 40 years experience in this field.
FAQ
Q: What is the preventive maintenance for hardness tester?
Q: What precautions are taken in Brinell hardness test?
Q: Which are factors affect Brinell hardness?
Q: How does a Brinell hardness tester work?
Q: Which is more accurate Brinell or Rockwell?
Q: Why is Brinell hardness important?
Q: Why very hard materials Cannot be tested in Brinell hardness test?
Q: What is the difference between Brinell and Vickers?
Q: What surface condition is necessary for Brinell test?
Q: What are the main features of Brinell hardness test?
Q: What apparatus required for Brinell hardness test?
Q: What are the four components of Brinell hardness test?
Q: How do you conduct a Brinell hardness test?
Q: What is the difference between Rockwell and Brinell hardness test?
Q: How do you calibrate a Brinell hardness tester?
Q: What is the application of hardness tester?
Q: What is the practical applicability of the Brinell hardness test in engineering?
Q: What is the principle of Brinell hardness test?
Q: How many types of hardness tester are there?
Q: What is the difference between Brinell and Mohs hardness scale?
