MHVS-1000Z型
Touch Screen Digital Automatic Turret Micro Vickers Hardness Tester
Main Specifications
| Item | Specification |
|---|---|
| Model | Micro Vickers Hardness Tester |
| Measuring Range | 5–3000 HV |
| Vickers Scales | HV0.01, HV0.025, HV0.05, HV0.1HV0.2, HV0.3, HV0.5, HV1 |
| Test Forces | 0.098, 0.245, 0.49, 0.98,1.96, 2.94, 4.9, 9.8 (N)10, 25, 50, 100, 200, 300, 500, 1000 (gf) |
| Magnification of Measuring System | 10×, 40×; 100× (observation), 400× (measurement) |
| Measuring Accuracy | Below 100 HV: ±5%200 HV: ±3%Above 400 HV: ±2% |
| Max. Sample Height (with protective cover) | 40 mm |
| Max. Sample Height (without protective cover) | 110 mm |
| Distance from Indenter Center to Machine Wall | 106 mm |
| Test Force Selection | Test force selected via handwheel, automatically recognized by the instrument |
| Test Modes | HV / HK |
| Resolution | 0.01 μm |
| Loading Control | Automatic (loading / dwelling / unloading) |
| Adjustable Brightness Range of Optical System | 0–10 |
| Dwell Time of Test Force (s) | 5–60 s |
| X-Y Stage Size (mm) | 100 × 100 |
| Travel Range (mm) | 25 × 25 |
| Minimum Reading (mm) | 0.01 |
| Light Path | Dual light paths (eyepiece & CCD camera channel) |
| Power Supply | AC 220 V / 50 Hz |
| Outer Package Dimensions | 620 × 375 × 790 mm |
| Net Dimensions | 480 × 325 × 530 mm |
| Weight | Net Weight: 59 kgGross Weight: 71 kg |
Packing List
| Item | Specification | Unit | Qty. | Remarks |
|---|---|---|---|---|
| Weights | - | set | 1 | |
| Weight Rod | - | pc | 1 | |
| XY Stage | - | pc | 1 | |
| Thin Shaft Anvil | - | pc | 1 | |
| Thin Sheet Anvil | - | pc | 1 | |
| Vise | - | pc | 1 | |
| Standard Micro Vickers Hardness Block | - | pc | 2 | |
| Leveling Screw | - | pc | 4 | |
| Spirit Level | - | pc | 1 | |
| Screwdriver | - | pc | 2 | |
| Power Cord | - | pc | 1 | |
| Diamond Pyramid Indenter | - | pc | 1 | |
| Halogen Bulb | - | pc | 1 | |
| Manual, Packing List & Certificate | - | set | 1 |
Important notices and safety information
The instrument interface supports switching between **18 measurement scales**: HRA, HRBW, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, and HBW. Test force is selected via an external knob and displayed automatically. The 5.6-inch LCD touch screen clearly shows hardness value, converted hardness, test method, test force, brightness, dwell time, number of measurements, statistical data, upper and lower measurement limits, test time and other parameters, making the whole testing process intuitive and clear. The operating system supports both Chinese and English languages. The machine is equipped with a built-in printer, and test data can also be saved and analyzed by exporting to a USB flash drive via the USB port. Accuracy complies with **GB/T 4340.2, ISO 6507-2 and ASTM E384**. **Applications:** Depth measurement of micro specimens, carburized layers, decarburized layers and quenched surface hardened layers; also suitable for metal foils, cemented carbides, micro-structured carburized parts, coated glass, wafers, nitrided layers, ceramics, steel, iron, non-ferrous metals, thin metal sheets and electroplated coatings. Ideal for precision Vickers testing on parallel planes, miniature parts and ultra-thin components.

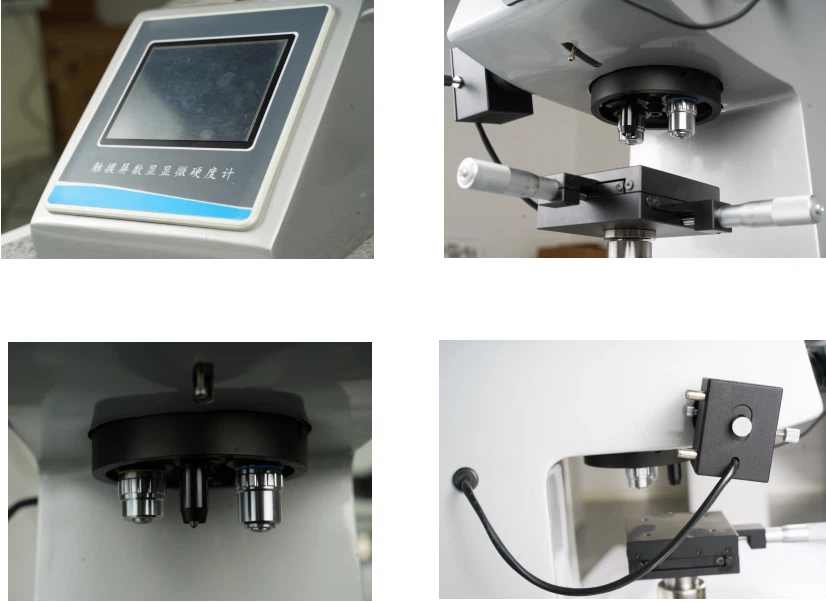

Detailed drawings

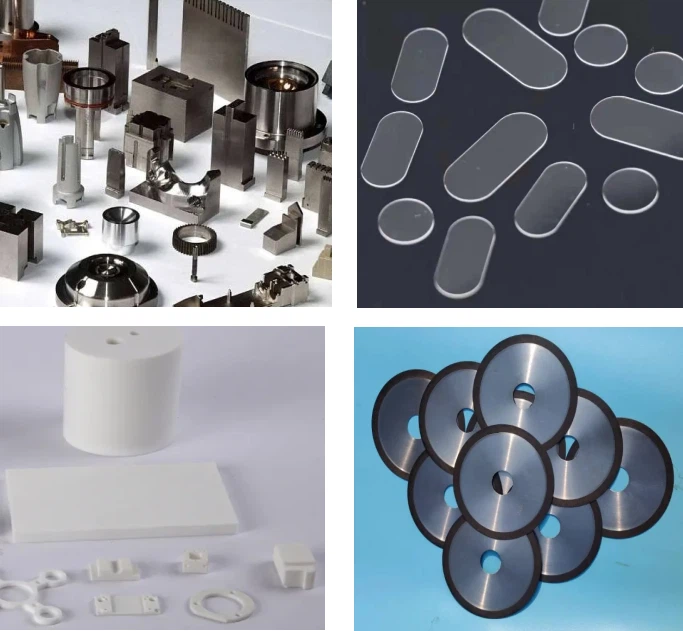

Application scenarios
Our Certificates
Our Shipping
